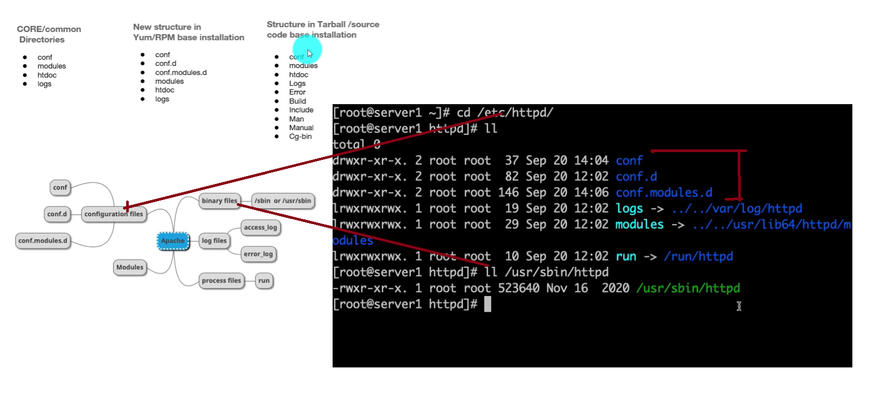

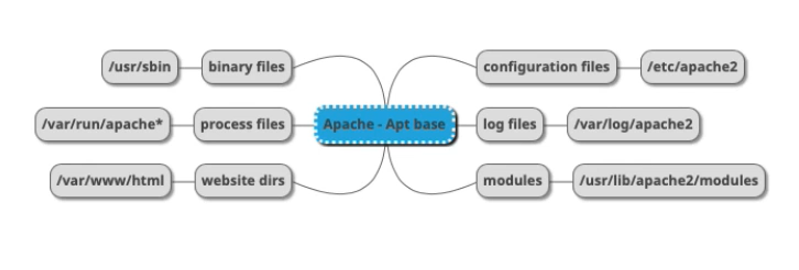

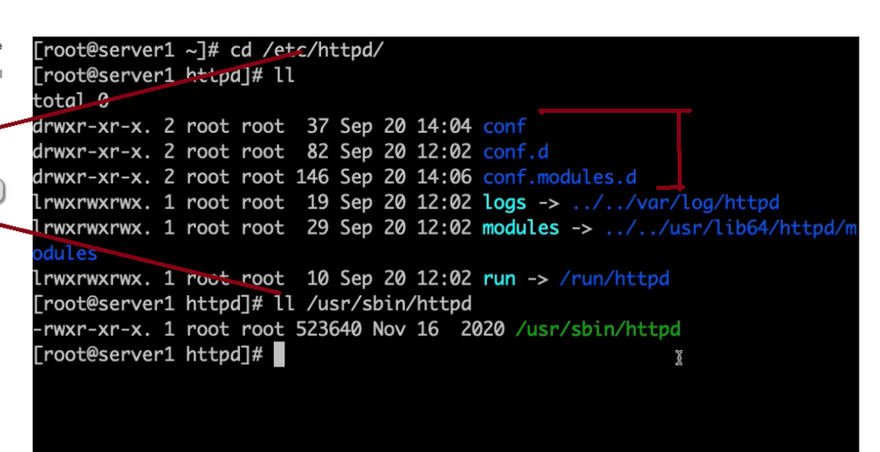

Directory Structure of Apache Web Server

apache-configuration-structure
apache-configuration-structure
apache-configuration-structure

QUESTION
Specify the locstion and element of directory structure.
The role of asterisk and question mark in directory structure.

The block provides administrators with the ability to modify the behavior of the web server on a per-host or per-domain basis; any options specified in the block apply to the entire domain. However, they don’t provide the ability to specify options on a per-directory basis. Thankfully, Apache provides additional possibilities for specific configuration.

This document addresses a number of ways to configure the behavior of your web server on a very narrow per-directory and even per-file level. For more information about specific options, consult our other Apache configuration guides or the official Apache documentation.

Directory and Options
The block refers to a directory within the filesystem and specifies Apache’s behavior in that directory. This block is enclosed in angle brackets and begins with the word “Directory” and a path to a directory within the file system. Options set in a directory block apply to the directory and its sub directories as specified. The following is an example of a directory block:

File: Virtual Host Entry in an Apache Configuration file

<Directory /srv/www/example.com/public_html/images>
    Order Allow,Deny
    Allow from all
    Deny 55.1
</Directory>

Additional Information
Directory blocks cannot be nested within each other.
Directory blocks can be nested within blocks.
The path contained in a directory block can contain the wildcard character. The asterisk will match any series of characters while a question mark will match against any single character. This may be useful if you need to control an option for the DocumentRoot of all virtual hosts:

File: Apache Configuration File

<Directory /srv/www/*/public_html>

File and Location Options
File Options
If you need further control over specific files within a directory on your server, use the directive. This directive controls the behavior of the web server with regards to a single file. The directives will apply to any file with the specified name. For instance, the following example directive will match any file named roster.htm in the filesystem:

File: Files Directive in an Apache Configuration file

<Files roster.htm>
     Order Allow,Deny
     Deny from all
</Files>

If enclosed in the block, this will apply to all files named roster.htm in the DocumentRoot or in directories located within the DocumentRoot of that Host. If the directive is enclosed in a block, the options specified will apply to all files named roster.htm within the directory, or within sub-directories of the directory specified.

Location Options
While and blocks control Apache’s behavior with regards to locations in the filesystem, the directive controls Apache’s behavior with regard to a particular path requested by the client. If a user makes a request for http://www.example.com/webmail/inbox/, the web server would look in the webmail/inbox/ directory beneath the DocumentRoot such as /srv/www/example.com/public_html/webmail/inbox/. One common use for this functionality is to allow a script to handle requests made to a given path. For example, the following block directs all requests for the specified path to a mod_python script:

File: Location Directive in an Apache Configuration file

<Location /webmail/inbox>
    SetHandler python-program
    PythonHandler modpython
    PythonPath "['/srv/www/example.com/application/inbox'] + sys.path"
</Location>

Note that the options specified in directives are processed after the options specified in blocks and can override any options set in these blocks.

Override Options with htaccess
In addition to the configuration methods discussed above, by default Apache will read configuration options for a directory from a file located in that directory. This file is typically called .htaccess. Look for the following configuration options in your httpd.conf and connected files:

File: /etc/httpd/httpd.conf or /etc/apache2/apache2.conf
AccessFileName .htaccess

<Files ~ "^\.ht">
    Order allow,deny
    Deny from all
</Files>

The first line tells Apache to look in .htaccess files for configuration options in publicly accessible directories. The second directive tells Apache to deny all requests to serve any file with a name that begins with the characters .ht. This prevents visitors from gaining access to configuration options.

You can change the AccessFileName to specify another name where Apache can look for these configuration options. If you change this option, be sure to update the directive to prevent unintentional public access.

Any option that can be specified in a block can be specified in an .htaccess file. .htaccess files are particularly useful in cases where the operator of a website is a user who has access to edit files in the public directory of website, but not to any of the Apache configuration files.

.htaccess files are processed for each request and apply to all requests made for files in the current directory. The directives also apply to all the directories “beneath” the current directory in the file system hierarchy.

Despite the power and flexibility provided by .htaccess files, there are disadvantages to using them:

If .htaccess files are enabled, Apache must check and process the directives in the .htaccess file on every request. Furthermore Apache must check for .htaccess files in directories above the current directory in the file system. This can cause a slight performance degradation if access files are enabled, and applies even if they’re not used.
Options set in .htaccess files can override options set in blocks, which can cause confusion and undesirable behavior. Any option set in an .htaccess file can be set in a block.
Allowing non-privileged users to modify web-server configurations presents a potential security risk, however the AllowOverride options may mitigate this risk considerably.
If you want to disable .htaccess files for a directory or tree of directories, specify the following option in any directory block.

File: Apache Directory block

AllowOverride None

Note
You can specify AllowOverride All for a directory that falls within a directory where overrides have been disabled.

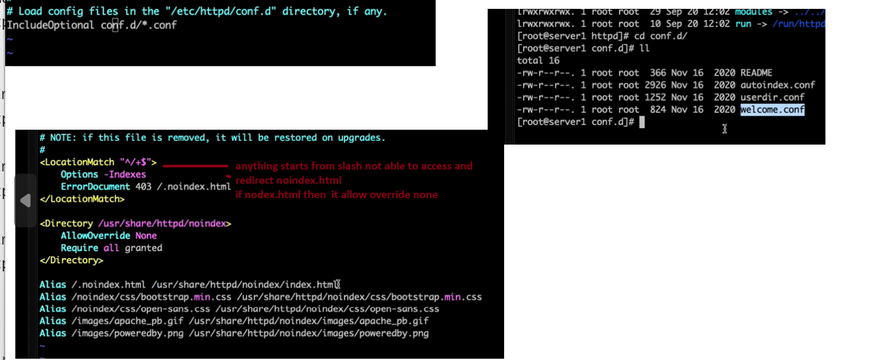

“Match” Directives and Regular Expressions
In addition to the basic directives described above, Apache also allows server administrators some additional flexibility in how directories, files, and locations are specified. These “Match” blocks allow administrators to define a single set of configuration options for a class of directories, files, and locations. Here is an example:

File: DirectoryMatch Block in an Apache Configuration file

<DirectoryMatch "^.+/images">
    Order Allow,Deny
    Allow from all
    Deny 55.1
</DirectoryMatch>

This block specifies a number of options for any directory that matches the regular expression ^.+/images. In other words, any path which begins with a number of characters and ends with images will match these options, including the following paths: /srv/www/example.com/public_html/images/, /srv/www/example.com/public_html/objects/images, and /home/username/public/www/images.

Apache also allows an alternate syntax for using regular expressions to define paths within a standard directory block. Adding a tilde (e.g. ~) between Directory and the path causes the specified path to be read as a regular expression. Regular expressions are a standard syntax for pattern matching, and Apache supports standard and Perl regular expression variants.

Though DirectoryMatch is preferred, the following block is equivalent to the previous block:

File: Directory Regular Expression Block in an Apache Configuration file

<Directory ~ "^.+/images">
    Order Allow,Deny
    Allow from all
    Deny 55.1
</Directory>

Apache provides similar functionality for using regular expressions to match a class of locations or files to a single set of configuration directives. As a result, the following options all specify valid configurations:

File: File and Location Match Directives

<Files ~ "^\..+">
    Order allow,deny
    Deny from all
</Files>

<FilesMatch "^\..+">
    Order allow,deny
    Deny from all
</FilesMatch>

<Location ~ "inbox$">
    Order Deny,Allow
    Deny from all
    Allow 192.168
</Location>

<LocationMatch "inbox$">
    Order Deny,Allow
    Deny from all
    Allow 192.168
</LocationMatch>

The and directives above are equivalent, as are the and directives.

Order of Precedence
With so many possible locations for configuration options, it is possible to specify one option in one file or block only to have it be overridden by another option later. One of the chief challenges in using the Apache HTTP server is in determining how all of the disparately located configuration options combine to produce specific web server behaviors.

The following list provides a guide to the priority that Apache uses to merge configuration options together. Later operations can override options specified earlier.

blocks are read first.
.htaccess files are read at the same time as blocks, but can override the options specified in blocks if permitted by the AllowOverride option.
and are read next.
and are read after directory behaviors have been determined.
Finally, and are read.
Generally, options are parsed in order from shortest to longest. In other words, options set for /srv/www/example.com/public_html/objects will be processed before options set for /srv/www/example.com/public_html/objects/images regardless of what order they appear in the configuration file. All other directives are processed in the order that they appear in the configurat
