The 10 questions. Each has the commands to find the answee....
- Container Registry login server and its 3 repositories.
- VNet range and the two subnet ranges.
- VM size, node count and Kubernetes version of the cluster.
- Pod names of the database, backend and frontend, and the node each runs on.
- The backend's image, and whether it comes from their own registry.
- The database's PVC name, size, storage class and the Azure Disk behind it.
- The frontend's private load balancer IP versus the Application Gateway public IP.
- Key Vault name, its secrets, the banner value and the Entra ID identity.
- DNS name servers and the app A record, and whether public DNS agrees.
- End to end: sign the guest book, show the message in the database before and after deleting the database pod, the WAF status code (403), and a screenshot.
Top comments (1)
capkhumauhxl.azurecr.io
Repositories: capstone-backend, capstone-frontend, postgres.
vnet 10.1.0.0/16,
subnet 10.1.0.0/24, 10.1.1.0/24.
vm-size: Standard_D2s_v6
node count: 1
Kubernetes version: default
Database: postgres-0
Backend: backend-767875cdd7-8kgk8
Frontend: frontend-76bb5b6646-ht4wx
capkhumauhxl.azurecr.io/capstone-backend:c6ceffddf
PVC data-postgres-0
5 GiB
storage class managed-csi
Azure Disk: pvc-09cebf06-063d-4603-a521-bfdb73641a16,
Frontend private load balancer: 10.1.0.100
public IP: 57.154.17.9
NS zone: khuma.khuma.collabgigs.com
Nameservers: ns1-06.azure-dns.com, ns2-06.azure-dns.net, ns3-06.azure-dns.org, ns4-06.azure-dns.info
Container Registry login server and its 3 repositories.
Login server : caplonieyvm.azurecr.io
Repositories:
capstone-backend
capstone-frontend
postgres
VNet range and the two subnet ranges.
Vnet : vnet-cap-loni - "10.1.0.0/16
subnet :
Subnet Range
snet-aks 10.1.0.0/24
snet-appgw 10.1.1.0/24
VM size, node count and Kubernetes version of the cluster.
VM size: Standard_D2s_v6
node count: 1
Kubernetes version: 1.35
Pod names of the database, backend and frontend, and the node each runs on.
kubectl get pods -n "capstone" -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
backend-5c647dccc5-qmlp2 1/1 Running 0 24m 192.168.0.101 aks-system-19610538-vmss000000
frontend-868899d69b-jfg8v 1/1 Running 0 26m 192.168.0.131 aks-system-19610538-vmss000000
postgres-0 1/1 Running 0 26m 192.168.0.19 aks-system-19610538-vmss000000
The backend's image, and whether it comes from their own registry. ??
kubectl get deployments -n "capstone" \
-o custom-columns='DEPLOYMENT:.metadata.name,IMAGE:.spec.template.spec.containers[*].image'
DEPLOYMENT IMAGE
backend caplonieyvm.azurecr.io/capstone-backend:c6ceffddfb
frontend caplonieyvm.azurecr.io/capstone-frontend:c6ceffddfb
PVC name: data-postgres-0
size: 5 GiB
storage class: managed-csi
azure disk: disk.csi.azure.com
The frontend's private load balancer IP versus the Application Gateway public IP.
frontend - clusterIP: 172.16.72.165
application gateway: 20.38.12.73
pip-cap-loni-appgw 20.38.12.73 rg-cap-loni
Key Vault name, its secrets, the banner value and the Entra ID identity.
keyvault: kv-cap-loni-eyvm kv-cap-loni-eyvm.vault.azure.net/
secrets:
Name Enabled
app-banner True
db-password True
DNS name servers and the app A record, and whether public DNS agrees.
az network dns zone list -g "rg-cap-loni" -o table
Location MaxNumberOfRecordSets Name NumberOfRecordSets ResourceGroup ZoneType
global 10000 loni.loni.collabgigs.com 3 rg-cap-loni Public

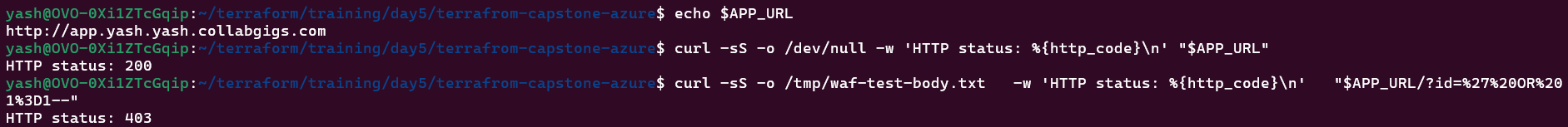

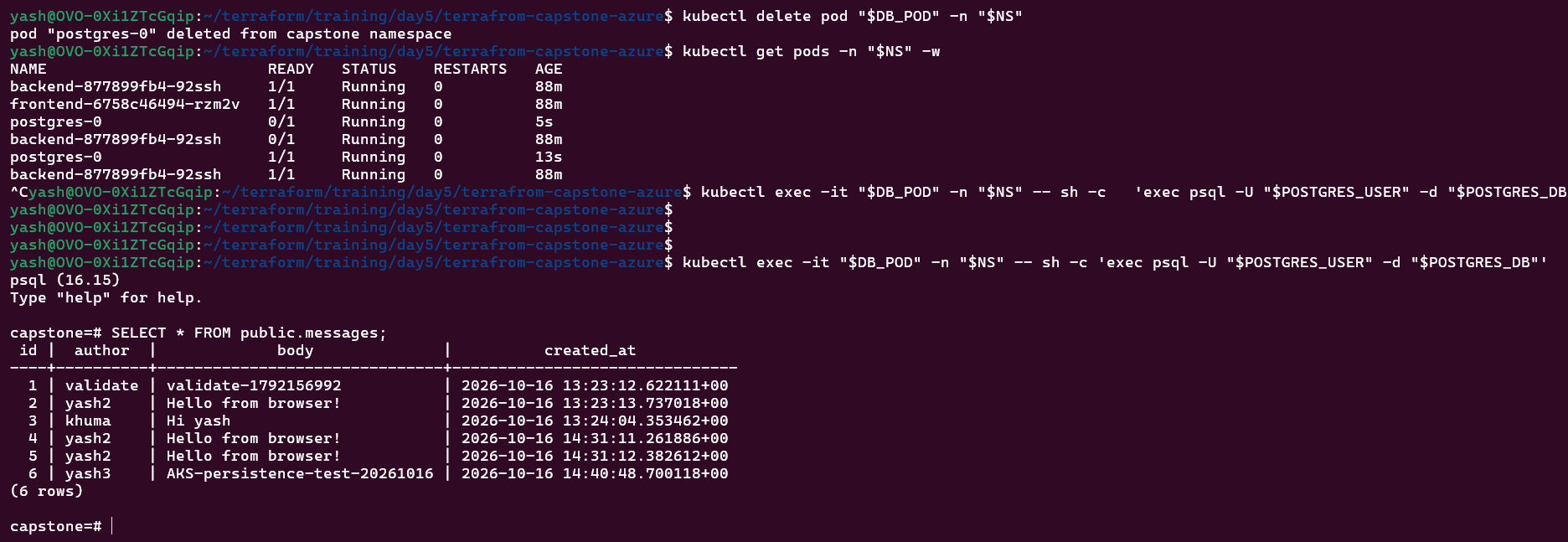

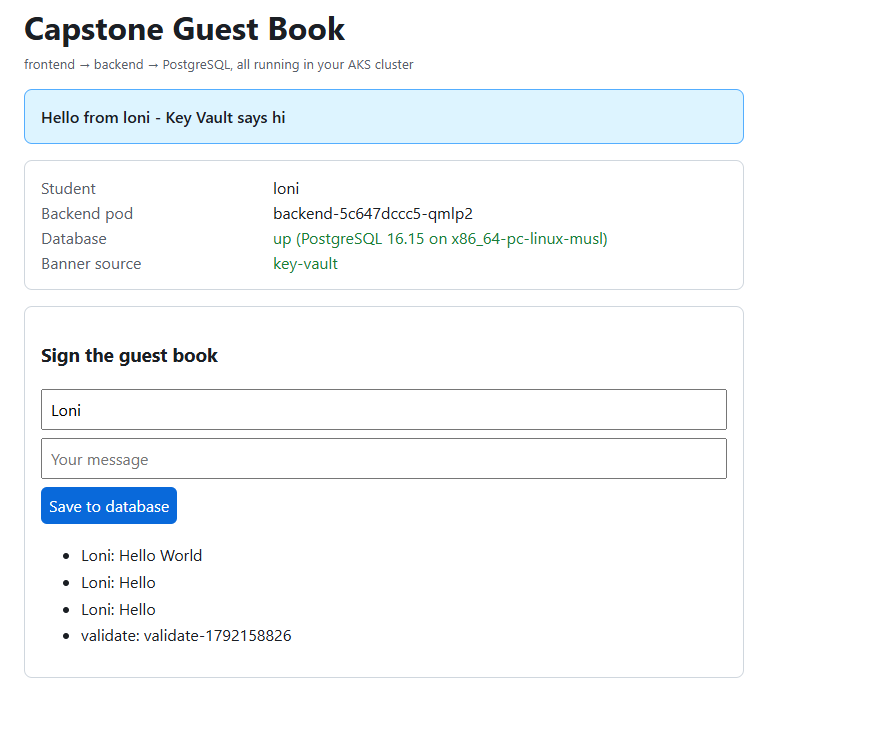

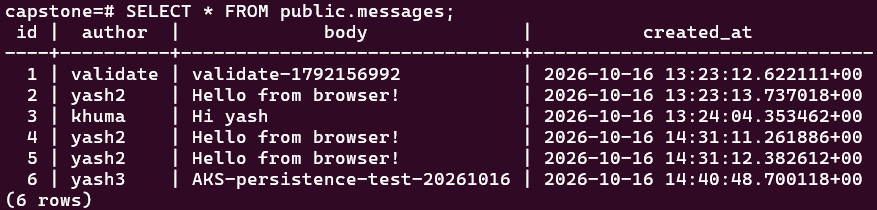

End to end: sign the guest book, show the message in the database before and after deleting the database pod, the WAF status code (403), and a screenshot.
capstone=# select * from messages
capstone-# \dt
List of relations
Schema | Name | Type | Owner
--------+----------+-------+----------
public | messages | table | capstone
(1 row)
capstone-# select * from messages
capstone-# select top 1 from messages
capstone-# desc messages
capstone-# SELECT column_name, data_type
capstone-# FROM information_schema.columns
capstone-# WHERE table_name = 'messages'
capstone-# SELECT column_name, data_type FROM information_schema.columns WHERE table_name = 'messages'
capstone-#
a00552947@OVO-BHX1usJtFAX:~/terrafrom-capstone-azure/capstone$ kubectl -n capstone get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE
data-postgres-0 Bound pvc-a662a84a-0fd2-43c8-9a1e-e8b287788c4c 5Gi RWO managed-csi <unset> 60m
a00552947@OVO-BHX1usJtFAX:~/terrafrom-capstone-azure/capstone$ kubectl get pods
No resources found in default namespace.
a00552947@OVO-BHX1usJtFAX:~/terrafrom-capstone-azure/capstone$ kubectl get pods -n capstone
NAME READY STATUS RESTARTS AGE
backend-558594b8f7-285qs 1/1 Running 0 59m
frontend-7b6bb8849c-rln8q 1/1 Running 0 60m
postgres-0 1/1 Running 0 60m
a00552947@OVO-BHX1usJtFAX:~/terrafrom-capstone-azure/capstone$
1- captariqbyvs
*backend the app itself / frontend: nginx / postgress: the DB
*[
"capstone-backend",
"capstone-frontend",
"postgres"
]
2-
*VNET range:
*[
{
"name": "vnet-cap-tariq",
"range": "10.3.0.0/16"
}
]
*Subnets:
* {
"name": "snet-aks",
"range": "10.3.0.0/24"
},
{
"name": "snet-appgw",
"range": "10.3.1.0/24"
}
3-
k8sVersion": "1.35"
nodeCount": 1
vmSize": "Standard_D2s_v6"
4-
Database: postgres-0
backend: backend-5d545fb4bb-dg726
frontend: frontend-5cd87694f6-scgbt
They all run on the same node: aks-system-20351786-vmss000000
5-
captariqbyvs.azurecr.io/capstone-backend:c6ceffddfb
6-
name: data-postgres-0
Size: 5Gi
Storage class: managed-csi
azure disk: pvc-b897db6f-e948-4bf9-900c-c555007177f1
7-
Frontend: 10.3.0.100
gateway: 20.163.105.31
8-
Vault name: kv-cap-tariq-byvs
secrets: app-banner, db-password

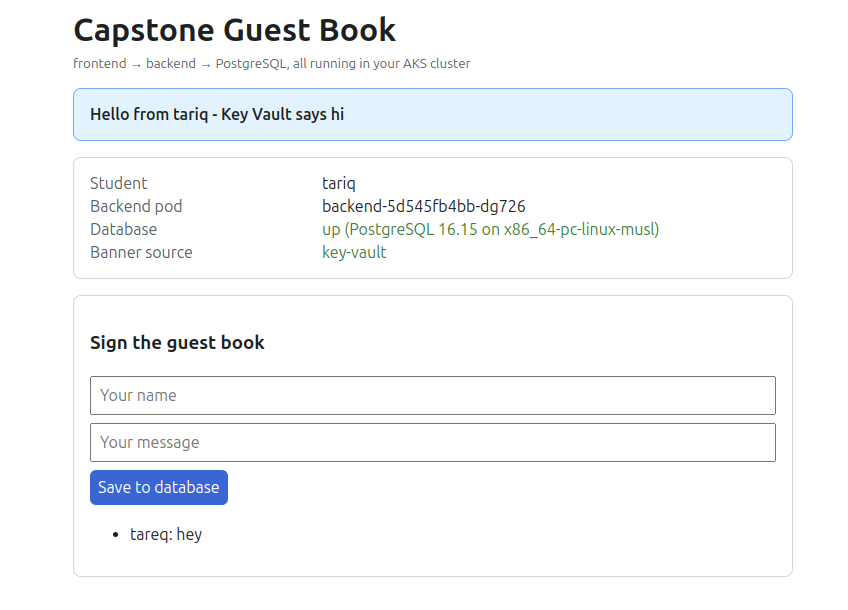

banner: Hello from tariq - Key Vault says hi
entra ID: id-cap-tariq-backend
9-
ns1-03.azure-dns.com.
ns2-03.azure-dns.net.
ns3-03.azure-dns.org.
ns4-03.azure-dns.info.
yes public DNS agrees:
10-
Login server: capyashkguu.azurecr.io
Repos: capstone-backend, capstone-frontend and postgres.
vnet-cap-yash: 10.1.0.0/16
snet-aks: 10.1.0.0/24
snet-appgw: 10.1.1.0/24
Size: Standard_D2s_v6
Count: 1
K8s v1.35
backend-877899fb4-92ssh
frontend-6758c46494-rzm2v
postgres-0
node: aks-system-30640146-vmss000000
backend: capyashkguu.azurecr.io/capstone-backend:c6ceffddfb
PVC: data-postgres-0
Size: 5GB
Class: managed-csi
AzDisk: pvc-d4f7e8b5-9cf2-4126-a8c3-b5635e813bbf
frontend: 10.1.0.100
app-gw: 20.106.88.162
KV: kv-cap-yash-kguu
Secrets: app-banner and db-password

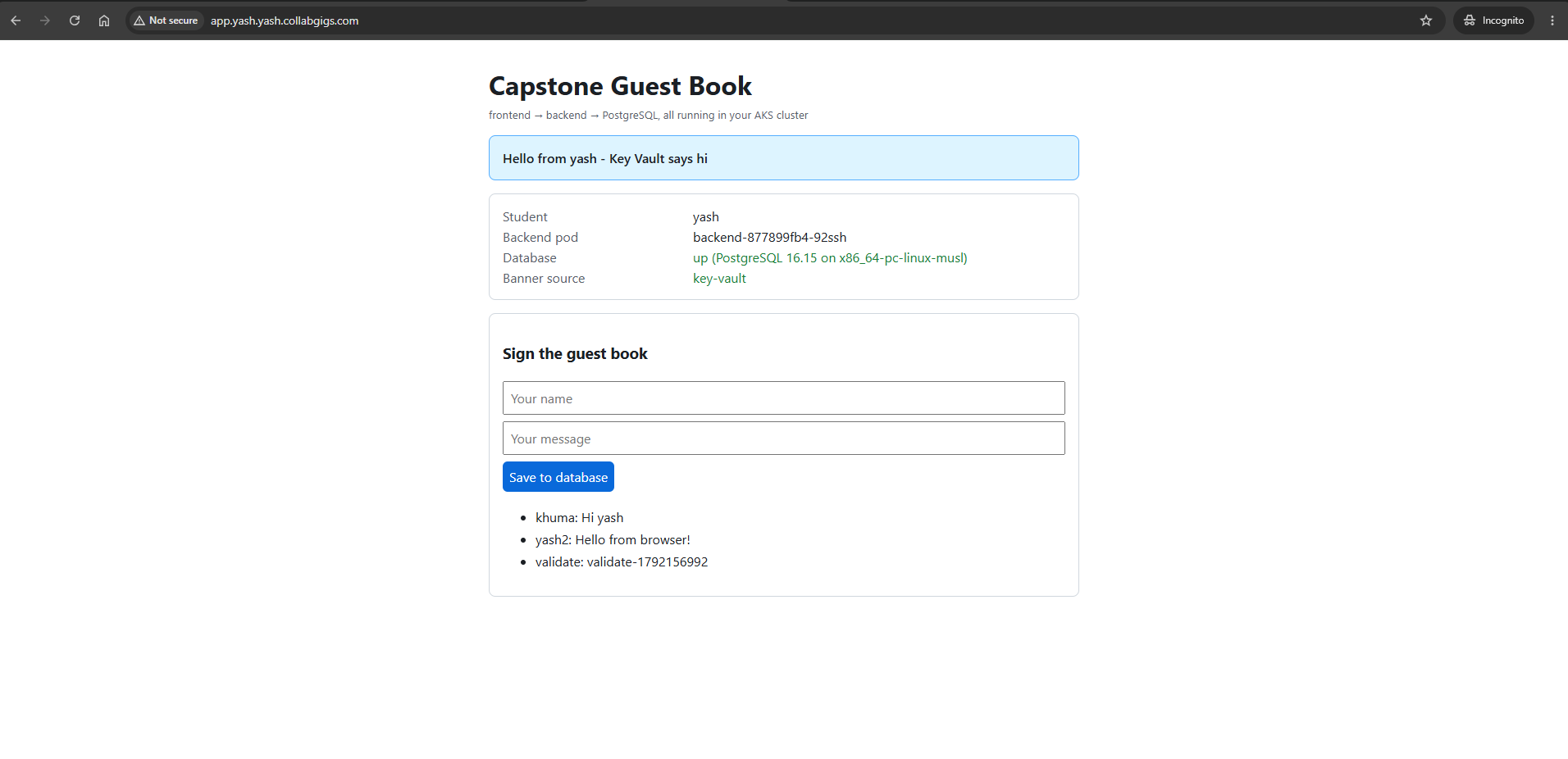

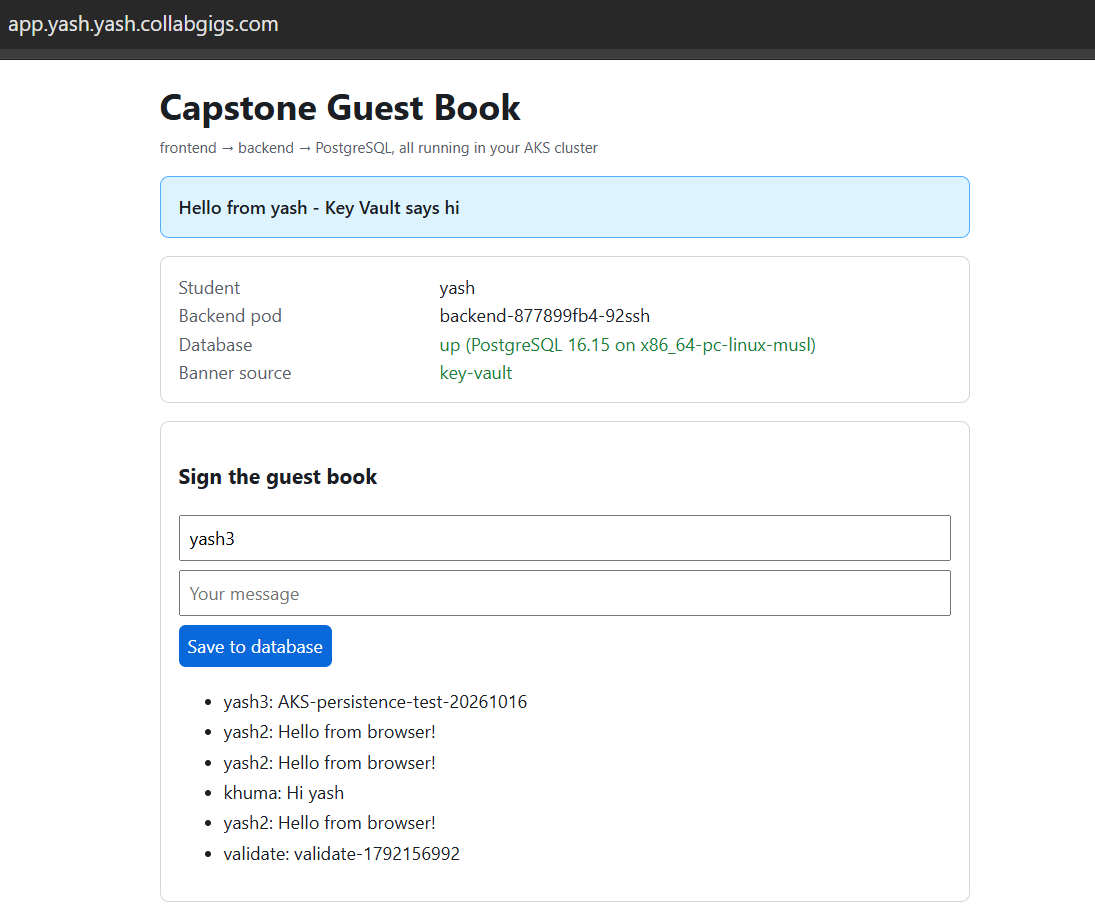

Banner value: Hello from yash - Key Vault says hi
Entra IDs: id-cap-yash-aks and id-cap-yash-backend
NameServers:
ns1-03.azure-dns.com.
ns2-03.azure-dns.net.
ns3-03.azure-dns.org.
ns4-03.azure-dns.info.
Zone: yash.yash.collabgigs.com
A Record: app
pip-cap-yash-appgw and dig A "app.yash.yash.collabgigs.com" +short --> 20.106.88.162
a)Container registry:capsakshimrc4
b) repos: capstone-backend, capstone-frontend, and postgres.
VNet: 10.1.0.0/16
AKS subnet (snet-aks): 10.1.0.0/24
Application Gateway subnet (snet-appgw): 10.1.1.0/24
kubernetesVersion: '1.35'
nodeCount: 1
vmSize: Standard_D2s_v6
4.
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
backend-fc6464964-bvl26 1/1 Running 0 69m 192.168.0.131 aks-system-15401439-vmss000000
frontend-5f855cd7f4-46c2c 1/1 Running 0 70m 192.168.0.196 aks-system-15401439-vmss000000
postgres-0 1/1 Running 0 70m 192.168.0.233 aks-system-15401439-vmss000000
5.apsakshimrc4.azurecr.io/capstone-backend:c6ceffddfb. Yes it comes from own registry
7.Frontend private load balancer IP: 10.1.0.100
Application Gateway public IP: 20.171.75.10
8.Key Vault: kv-cap-sakshi-mrc4
Secrets: app-banner and db-password
Banner value: Hello from sakshi - Key Vault says hi
Backend Entra ID identity: id-cap-sakshi-backend
9.Application Gateway IP is 20.171.75.10
