The Region Proposal Network (RPN) and ROI (Region of Interest) pooling are two key components of the Faster R-CNN (Region-based Convolutional Neural Network) architecture for object detection. While both contribute to the overall process of object detection, they serve different purposes. Let's explore the differences between RPN and ROI pooling:
Region Proposal Network (RPN)
:
Purpose: The primary role of the RPN is to propose candidate regions in the input image that are likely to contain objects. It acts as a region proposal mechanism, suggesting potential bounding box locations for further investigation.
Operation: The RPN generates a set of anchor boxes, which are pre-defined bounding boxes of different sizes and aspect ratios placed at various locations across the image. The RPN then predicts adjustments to these anchor boxes and assigns objectness scores to indicate the likelihood of each anchor containing an object.
Output: The RPN outputs a set of region proposals, along with their associated objectness scores and bounding box adjustments. These proposals are subsequently used as input for the next stage of the Faster R-CNN pipeline.

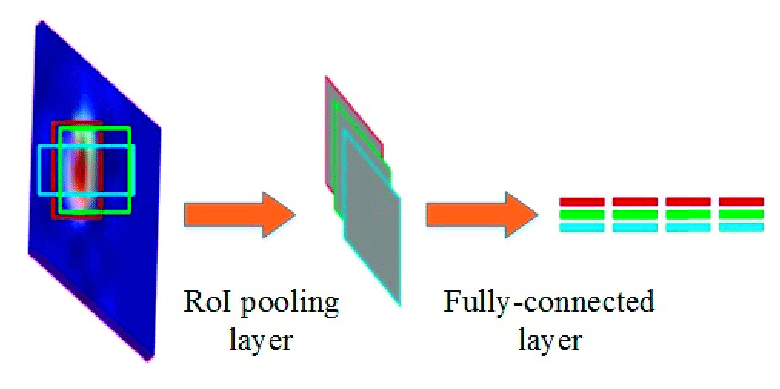

ROI Pooling
Purpose: After the RPN proposes candidate regions, the goal is to classify and refine these regions accurately. ROI pooling is a technique used to extract fixed-size feature maps from the proposed regions so that they can be fed into a classifier.
Operation: Given the region proposals from the RPN, ROI pooling involves dividing each proposed region into a fixed number of spatial bins. These bins are used to generate a fixed-size feature map regardless of the size or aspect ratio of the original region. This fixed-size feature map is then used as input for subsequent classification and bounding box regression.
Output: The output of ROI pooling is a set of fixed-size feature maps corresponding to the proposed regions. These feature maps are used by the subsequent stages of the Faster R-CNN model for object classification and localization.

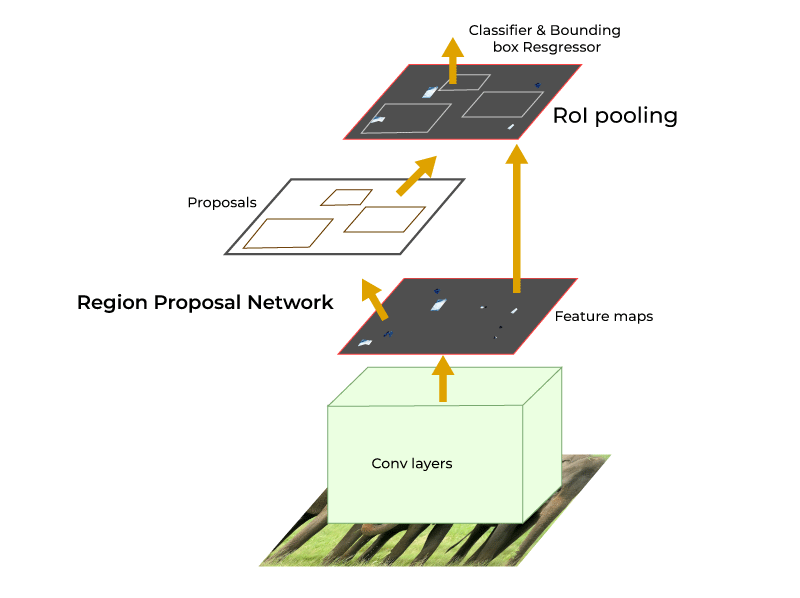

In summary, the Region Proposal Network (RPN) is responsible for suggesting potential object locations in the form of region proposals, while ROI pooling is a technique used to extract fixed-size feature maps from these proposed regions for further processing in the object detection pipeline. Together, these components contribute to the accurate localization and classification of objects in Faster R-CNN.
