How to Auto-Assign Realm Roles in Keycloak Using Laravel APIs

What are Realm Roles (and why they matter)?
The Goal: Auto-assign role during Register / Login
Why you must use the Keycloak Admin API (Service Account)
How Auto-Assignment works (Conceptually)
Why role should be a “realm role” not just an “attribute”
What happens after assignment?
Best Practices (Theory)
Keylock and laravel setup for Auto-Assign Realm Roles in Keycloak for redirection

When you build multiple applications (admin panel, user portal, partner portal, mobile apps) under one identity system, the biggest problem is keeping access control consistent. You don’t want each app to decide who is an admin or partner in its own database. That becomes messy, insecure, and hard to scale.

What are Realm Roles (and why they matter)?

In Keycloak, a realm role is a global role that applies across the entire realm.
Meaning: once a user has the realm role admin, every client (web, mobile, partner, etc.) can recognize that identity.

Realm roles are the best fit when:

The role describes who the user is (admin / user / partner)

You need this identity to work across multiple domains and multiple apps

You want one centralized source of truth for authorization and routing

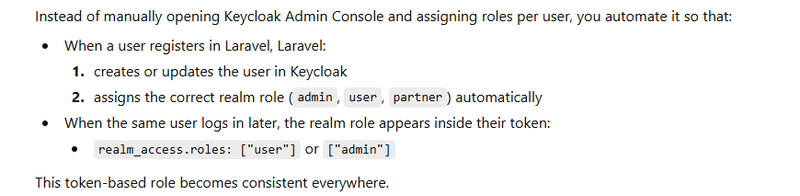

The Goal: Auto-assign role during Register / Login

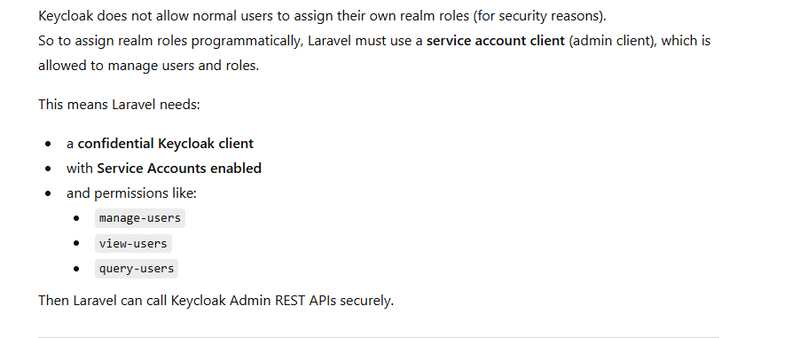

Why you must use the Keycloak Admin API (Service Account)

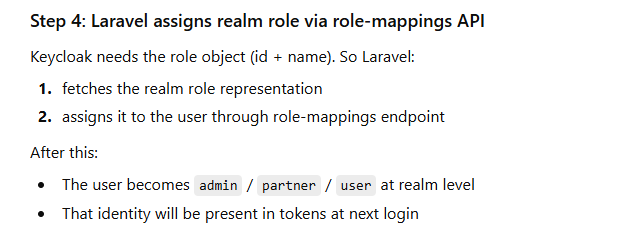

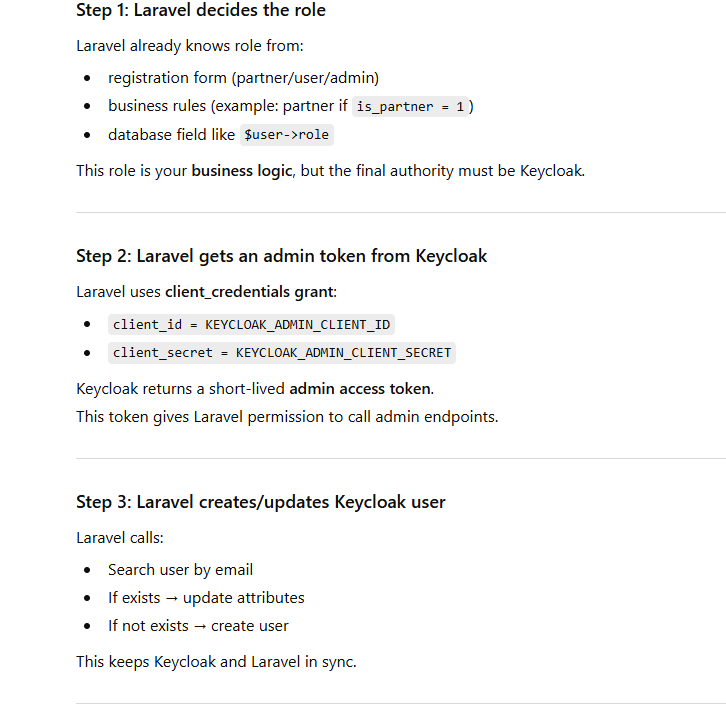

How Auto-Assignment works (Conceptually)

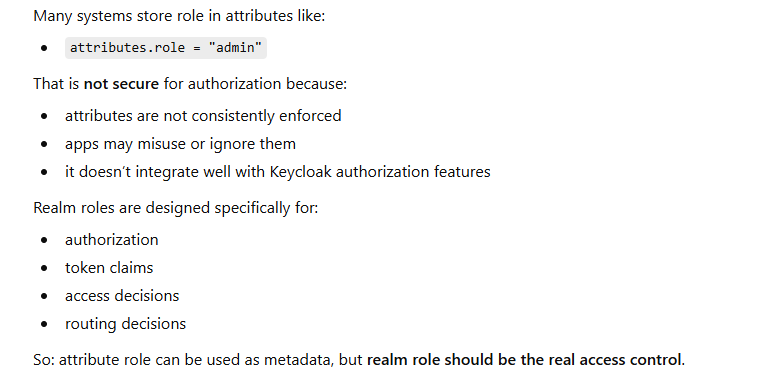

Why role should be a “realm role” not just an “attribute”

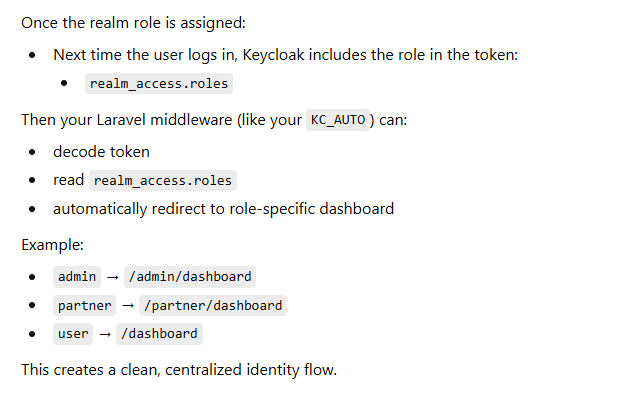

What happens after assignment?

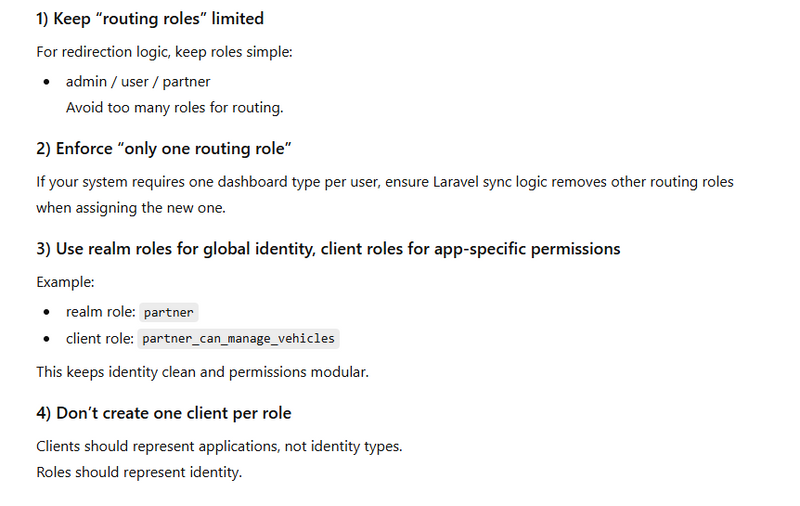

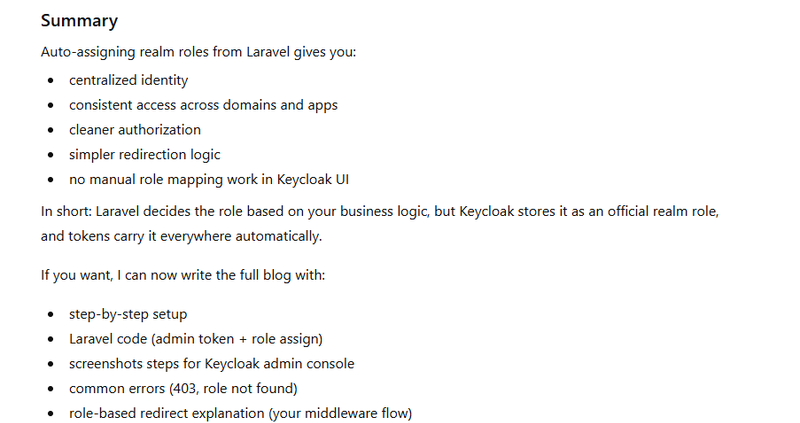

Best Practices (Theory)

Keylock and laravel setup for Auto-Assign Realm Roles in Keycloak for redirection

step 1:Create Realm Roles in keycloack
step2:Create Admin Service Account Client (for Laravel)
step3:Give Permissions to Service Account
step4:In laravel during registeration and login get role from larvel and assigns realm role via role-mappings API in keylock using post
step5:In handle middleware redirect url based on realm role in keylock

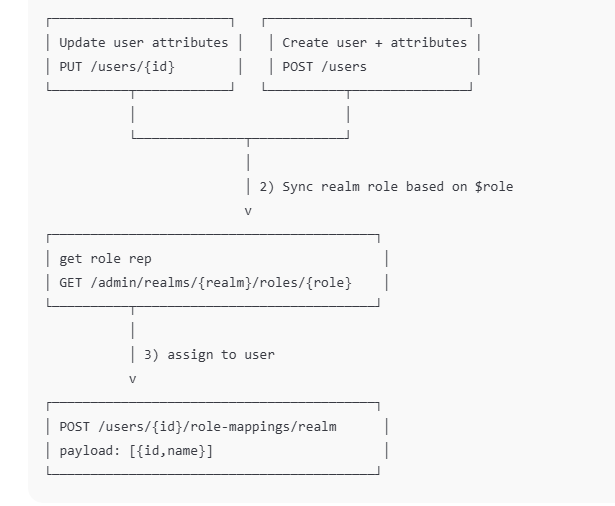

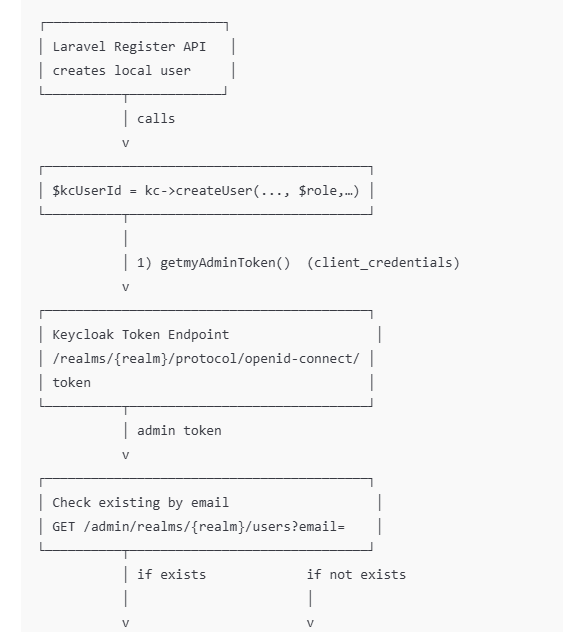

Registration / user creation + realm role assignment flow (Laravel → Keycloak Admin API)

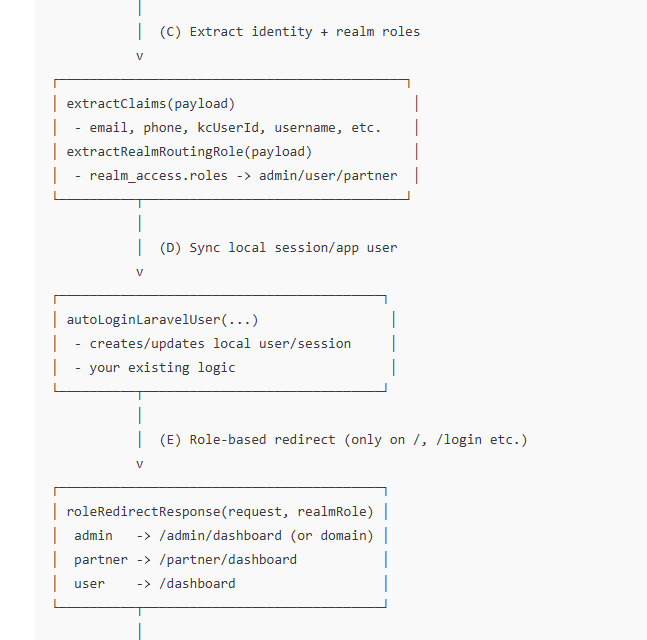

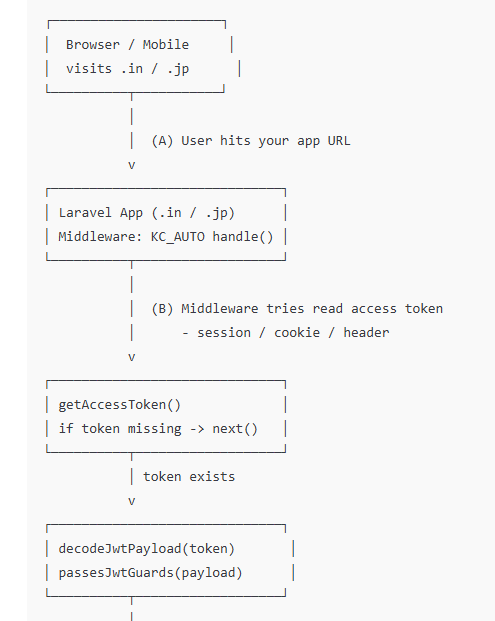

End-to-end flow diagram (Login → Token → Middleware → Redirect)

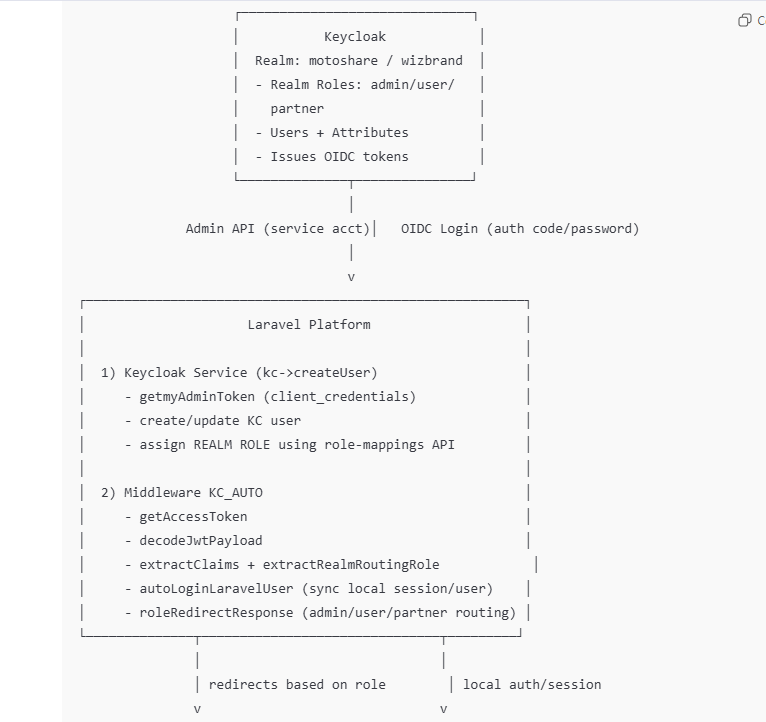

Architecture block diagram (components + responsibilities)

PART 1 — Keycloak Setup (Step-by-step)

Step 1: Create Realm Roles

Open Keycloak Admin Console

Select your Realm (example: motoshare)

Go to Roles → Realm roles

Click Create role

Create these roles:

admin

user

partner

Step 2: Create Admin Service Account Client (for Laravel)

Go to Clients → Create client

Client type: OpenID Connect

Client ID: motoshare-admin (example)

Save

Now open this client and set:

Settings

Client authentication: ON (confidential)

Service accounts enabled: ON

Save

Credentials tab

Copy the Client Secret (you will put this in Laravel .env)

Step 3: Give Permissions to Service Account

Go to Clients → motoshare-admin

Open Service account roles

In “Client roles” dropdown select: realm-management

Assign these roles:

✅ manage-users

✅ view-users

✅ query-users

✅ manage-roles (recommended)
Enter fullscreen mode Exit fullscreen mode

This is mandatory, otherwise Laravel will get 403 Forbidden when assigning roles.

PART 2 — Laravel Setup (Full Working Code)

Step 1: Add .env Values

KEYCLOAK_BASE_URL=https://auth.motoshare.in
KEYCLOAK_REALM=motoshare

# Your normal login client (if you use it elsewhere)
KEYCLOAK_CLIENT_ID=motoshare
KEYCLOAK_CLIENT_SECRET=xxxx

# Admin service-account client (IMPORTANT)
KEYCLOAK_ADMIN_CLIENT_ID=motoshare-admin
KEYCLOAK_ADMIN_CLIENT_SECRET=yyyy
Enter fullscreen mode Exit fullscreen mode

When user already exists (before return $kcUserId;)

// ✅ Sync REALM ROLE for existing user (admin/user/partner)
$this->syncRoutingRealmRole($token, $kcUserId, $role);
Enter fullscreen mode Exit fullscreen mode
 public function createUser(
        string $username,
        string $email,
        string $fname,
        string $lname,
        ?string $password = null,
        ?string $phone = null,
        ?string $address = null,
        ?string $status = null,
        ?string $sms_notification = null,
        ?string $email_notification = null,
        ?string $whatsapp_notification = null,
        ?string $role = null, // ✅ admin/user/partner comes here
        ?string $state = null,
        ?string $city = null,
        ?string $adhar = null,
        ?string $pinCode = null,
        ?string $profile_img = null,
        ?string $created_at = null,
        ?string $updated_at = null
    ): ?string {
        $token = $this->getmyAdminToken();
        if (!$token) {
            Log::error("❌ Cannot create user — admin token missing");
            return null;
        }

        if (!$password) {
            $password = Str::random(12);
        }

        [$kcBase, $realm] = $this->getKcConfig();
        $realmUrl = "{$kcBase}/admin/realms/{$realm}";
        $usersUrl = "{$realmUrl}/users";

        // 1) Check if user exists by email
        $response = Http::withToken($token)->get($usersUrl, ['email' => $email]);

        Log::info("📩 KC find-user response", [
            'status' => $response->status(),
            'json'   => $response->json(),
        ]);

        $existing = $response->json();

        // If exists: update + sync realm role
        if (!empty($existing)) {
            $kcUser   = $existing[0];
            $kcUserId = $kcUser['id'];

            $updatePayload = $this->buildUpdatePayloadForExistingUser(
                $kcUser,
                $email,
                $phone,
                $address,
                $status,
                $sms_notification,
                $email_notification,
                $whatsapp_notification,
                $role,
                $state,
                $city,
                $adhar,
                $pinCode,
                $profile_img,
                $created_at,
                $updated_at
            );

            if (!empty($updatePayload)) {
                Log::info("📌 Updating existing KC user", [
                    'kc_user_id' => $kcUserId,
                    'payload'    => $updatePayload,
                ]);

                Http::withToken($token)->put("$usersUrl/$kcUserId", $updatePayload);
            }

            // ✅ Assign realm role after update
            $this->syncRoutingRealmRole($token, $kcUserId, $role);

            Log::info("🟢 Existing KC user synced: $kcUserId");
            return $kcUserId;
        }

        // 2) Create new user
        $payload = $this->buildCreatePayload(
            $username,
            $email,
            $fname,
            $lname,
            $password,
            $phone,
            $address,
            $status,
            $sms_notification,
            $email_notification,
            $whatsapp_notification,
            $role,
            $state,
            $city,
            $adhar,
            $pinCode,
            $profile_img,
            $created_at,
            $updated_at
        );

        Log::info("📤 Creating new KC user", $payload);

        $response = Http::withToken($token)->post($usersUrl, $payload);

        if ($response->failed()) {
            Log::error("❌ KC create user failed: " . $response->body());
            return null;
        }

        $kcUserId = basename($response->header('Location'));
        Log::info("🟢 KC user created with ID: $kcUserId");

        // ✅ Assign realm role after creation
        $this->syncRoutingRealmRole($token, $kcUserId, $role);

        return $kcUserId;
    }
Enter fullscreen mode Exit fullscreen mode

Sync routing role (admin/user/partner) in one call

   private function syncRoutingRealmRole(string $token, string $kcUserId, ?string $role): bool
    {
        if (!$role) return true;

        $roleName = strtolower(trim($role));
        $allowed  = ['admin', 'user', 'partner'];

        if (!in_array($roleName, $allowed, true)) {
            Log::warning("⚠️ [KC-ROLE] invalid role from Laravel", ['role' => $role]);
            return false;
        }

        foreach ($allowed as $r) {
            if ($r !== $roleName) {
                try { $this->removeRealmRoleFromUser($token, $kcUserId, $r); } catch (\Throwable $e) {}
            }
        }

        return $this->assignRealmRoleToUser($token, $kcUserId, $roleName);
    }
Enter fullscreen mode Exit fullscreen mode

Get realm role representation (by name)

  private function getRealmRoleRep(string $token, string $roleName): ?array
    {
        [$kcBase, $realm] = $this->getKcConfig();

        $url = "{$kcBase}/admin/realms/{$realm}/roles/{$roleName}";
        $res = Http::withToken($token)->get($url);

        Log::info("🔎 [KC-ROLE] getRealmRoleRep", [
            'role'   => $roleName,
            'status' => $res->status(),
            'ok'     => $res->ok(),
        ]);

        if (!$res->ok()) return null;

        $role = $res->json() ?: [];
        if (empty($role['id']) || empty($role['name'])) return null;

        return $role;
    }
Enter fullscreen mode Exit fullscreen mode

Assign realm role to user

    private function assignRealmRoleToUser(string $token, string $kcUserId, string $roleName): bool
    {
        [$kcBase, $realm] = $this->getKcConfig();

        $role = $this->getRealmRoleRep($token, $roleName);
        if (!$role) return false;

        $url = "{$kcBase}/admin/realms/{$realm}/users/{$kcUserId}/role-mappings/realm";

        $payload = [[
            'id'   => $role['id'],
            'name' => $role['name'],
        ]];

        $res = Http::withToken($token)->post($url, $payload);

        Log::info("✅ [KC-ROLE] assigned", [
            'kc_user_id' => $kcUserId,
            'role'       => $roleName,
            'status'     => $res->status(),
            'ok'         => $res->ok(),
        ]);

        return $res->ok();
    }
Enter fullscreen mode Exit fullscreen mode

Remove realm role from user (optional but recommended)

   private function removeRealmRoleFromUser(string $token, string $kcUserId, string $roleName): bool
    {
        [$kcBase, $realm] = $this->getKcConfig();

        $role = $this->getRealmRoleRep($token, $roleName);
        if (!$role) return false;

        $url = "{$kcBase}/admin/realms/{$realm}/users/{$kcUserId}/role-mappings/realm";

        $payload = [[
            'id'   => $role['id'],
            'name' => $role['name'],
        ]];

        $res = Http::withToken($token)->send('DELETE', $url, [
            'json' => $payload
        ]);

        return $res->ok();
    }
Enter fullscreen mode Exit fullscreen mode
  public function getKcConfig(): array
    {
        $kcBase = rtrim((string) env('KEYCLOAK_BASE_URL'), '/');
        $realm  = (string) env('KEYCLOAK_REALM');
        return [$kcBase, $realm];
    }
Enter fullscreen mode Exit fullscreen mode
// ✅ ADMIN TOKEN (service account)
Enter fullscreen mode Exit fullscreen mode
    public function getmyAdminToken(): ?string
    {
        [$kcBase, $realm] = $this->getKcConfig();
        $tokenUrl = "{$kcBase}/realms/{$realm}/protocol/openid-connect/token";

        $resp = Http::asForm()->post($tokenUrl, [
            'grant_type'    => 'client_credentials',
            'client_id'     => env('KEYCLOAK_ADMIN_CLIENT_ID'),
            'client_secret' => env('KEYCLOAK_ADMIN_CLIENT_SECRET'),
        ]);

        Log::info("🔐 [KC-ADMIN] token resp", [
            'status' => $resp->status(),
            'ok'     => $resp->ok(),
            'body'   => $resp->ok() ? null : $resp->body(),
        ]);

        if (!$resp->ok()) return null;
        return $resp->json('access_token');
    }
Enter fullscreen mode Exit fullscreen mode

Modify your handle() to use realm role + redirect AFTER login

$claims = $this->extractClaims($payload);

// ✅ NEW: realm role from JWT
$realmRole = $this->extractRealmRoutingRole($payload);

Log::info('[KC_AUTO][ROLE]', [
    'attribute_role' => $claims['role'] ?? null,   // old attribute role
    'realm_role'     => $realmRole,               // new realm role
    'realm_roles'    => $payload['realm_access']['roles'] ?? [],
]);

// ✅ Run your existing auto-login (do not change its logic)
$response = $this->autoLoginLaravelUser(
    $claims['email'],
    $claims['phone'],
    $claims['kcUserId'],
    $claims['username'],
    $claims['role'], // you can keep passing attribute role for DB sync
    $claims['status'],
    $claims['address'],
    $claims['sms_notification'],
    $claims['email_notification'],
    $claims['whatsapp_notification'],
    $claims['email_verified_at'],
    $claims['number_verified_at'],
    $request,
    $next
);

// ✅ NEW: redirect based on REALM ROLE after login succeeded
if ($realmRole) {
    $redir = $this->roleRedirectResponse($request, $realmRole);
    if ($redir) {
        Log::info('[KC_AUTO][REDIRECT]', ['role' => $realmRole, 'to' => $redir->getTargetUrl()]);
        return $redir;
    }
}

return $response;
Enter fullscreen mode Exit fullscreen mode

Add function: extract realm role from token

Put this inside the same middleware class:

private function extractRealmRoutingRole(array $payload): ?string
{
    $roles = $payload['realm_access']['roles'] ?? [];

    if (!is_array($roles)) return null;

    // priority order (admin > partner > user)
    if (in_array('admin', $roles, true)) return 'admin';
    if (in_array('partner', $roles, true)) return 'partner';
    if (in_array('user', $roles, true)) return 'user';

    return null;
}
Enter fullscreen mode Exit fullscreen mode

Add function: role-based redirect decision

Put this also in same middleware:

private function roleRedirectResponse(\Illuminate\Http\Request $request, string $role)
{
    // ✅ Define your final destinations
    // You can move these to config/env if you want.
    $map = [
        'admin'   => 'https://yourdomain.in/admin/dashboard',
        'partner' => 'https://partner.yourdomain.jp/dashboard',
        'user'    => 'https://yourdomain.in/dashboard',
    ];

    $target = $map[$role] ?? null;
    if (!$target) return null;

    // ✅ Prevent redirect loop:
    // if already on the right area, don't redirect.
    $current = $request->fullUrl();
    if (str_starts_with($current, $target)) {
        return null;
    }

    // Another safe guard: if request is AJAX/API, don't redirect
    if ($request->expectsJson() || $request->is('api/*')) {
        return null;
    }

    return redirect()->away($target);
}
Enter fullscreen mode Exit fullscreen mode

Top comments (0)
